Warmflow HE High Level Balanced Flue Kit
Product code: 392033
Warmflow HE High Level Balanced Flue Kit
Product code:
Available for delivery
(Approx. 3-5 working days)
Available to order for delivery
Extended lead times apply
Out of stock for delivery
Available for collection
Available to order for collection
from
Change Branch
Extended lead times apply
Out of stock for collection
Out of stock for collection
Change Branch
was
£
£
Inc VAT
£
Ex VAT
was
£
£
Ex VAT
£
Inc VAT
(
£
per
)
Ex VAT
, per pack
Inc VAT
, per pack
Ex VAT
Inc VAT
Ex VAT
, per pack
Inc VAT
, per pack
Ex VAT
Inc VAT
Do you have a MacBlair trade account?
Product Information
he high-level balanced flue kit provides an elevated discharge point for Warmflow HE boilers where a standard low level terminal is unsuitable due to obstructions or clearance restrictions. The concentric layout maintains a sealed combustion system, delivering clean combustion air to the appliance while safely removing flue gases at a higher termination point. The kit components shown in the manufacturer diagrams ensure a stable flue route with controlled resistance for efficient boiler operation.
This configuration is commonly selected when installations must avoid low openings, narrow passages or locations where pedestrian access prevents the use of a standard horizontal outlet. The included 1000mm extension and 87° bend allow installers to lift the terminal to a safer and more compliant height without compromising flue performance. Because the system integrates seamlessly with other F-series components, the HBF kit can be adapted into more complex layouts used in oil boiler flues, provided equivalent-length limits are observed.
The Easy-Fit couplings ensure each piece locks securely into place, supporting reliable draught performance and simplified installation. When designed with appropriate fall back to the boiler, the high-level kit offers a safe, durable solution for properties where elevated venting is essential.
- Provides elevated horizontal flue termination
- Includes 1000mm extension and 87° bend
- Maintains full room sealed balanced flue operation
- Suitable for areas with restricted low-level clearances
- Easy-Fit assembly for secure and accurate installation
Specifications
| Brand | Warmflow |
|---|---|
| Energy Rating | Not Selected |

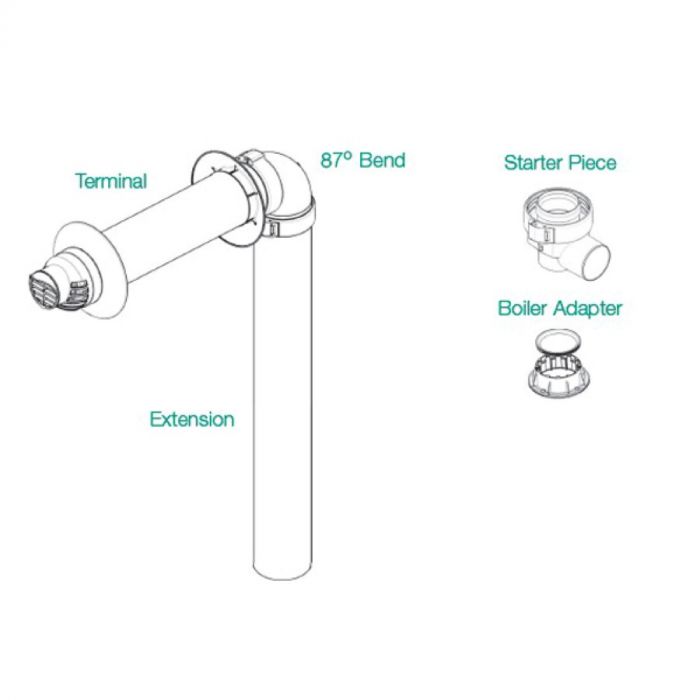

| Includes | Boiler adapter & starter piece, End terminal, Flue fittings kit & flue thermostat, 1000mm extension and 87Degree bend |
| Model Name / No | HBF |
| Sold Per | Pack |
| Suitable For | Warmflow HE boilers up to 44kW |
| Adjustment Range | Up to 2000mm (combined components) |
| Inner Diameter | 60 mm |
| Outer Diameter | 100 mm |
| Flue Type | Balanced Flue |
