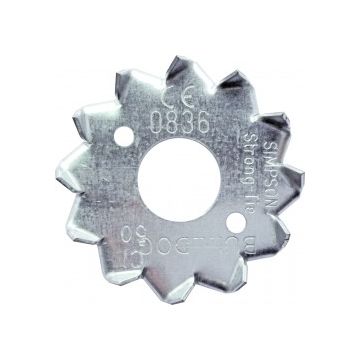

Toothed timber connectors sit between two pieces of timber to increase the strength of bolted joints. They grip the wood tightly, preventing movement and spreading the load evenly to stop the timber from splitting under pressure.
Timber Truss Connectors & Mending Plates
Truss clips and connectors play a vital role in reinforcing timber structures by providing secure joints between wooden components. The selection includes essential hardware like 50mm toothed plate double timber connectors and versatile 50mm mending plates. These components are regularly used during roof installations, framing, and general structural repairs. Integrating these pieces ensures load-bearing joints remain stable and aligned under varying weights. They are frequently paired with solid joist & studding timber to create robust frameworks that meet standard building requirements.
Applying these metalwork products correctly relies on standard installation practices. Toothed plates sit between two pieces of timber to reduce splitting and spread the load across the joint, while flat mending plates secure flush timber segments together. These connectors are manufactured from galvanised steel, providing excellent resistance against rust and corrosion when exposed to moisture. When attaching them to a framework, using proper wood screws or dedicated structural nails ensures the metal plates grip the timber securely. This compatibility makes them highly effective when assembling roof trusses or reinforcing structural beams alongside sturdy wall plate straps.
The straightforward design of these metal connectors simplifies installation, saving valuable time during structural builds. Their pre-punched holes guide fixings directly into the timber, reducing the risk of mistakes and ensuring a reliable hold every time. Galvanised steel components help projects maintain compliance with modern building regulations by offering predictable load distribution and long-lasting durability. Whether securing complex roof designs or repairing existing timber frames, these versatile plates provide an accessible way to strengthen joints. Pairing them with other structural hardware like angle brackets and joist hangers & struts creates a comprehensive and secure structural support system.
Truss Clips & Connectors FAQ's

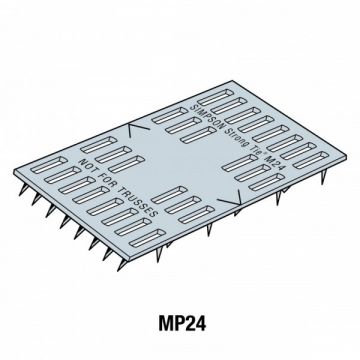

Place the mending plate flat across the joint where the two pieces of timber meet. Ensure the wood is fully flush, then drive appropriate structural screws or nails through the pre-punched holes to secure the connection firmly.
It is recommended to use galvanised or stainless steel nails or screws to prevent corrosion. The fixings should match the diameter of the pre-punched holes to ensure a tight, secure fit without damaging the metal plate.
Yes, metalwork used in structural timber projects is typically galvanised. The zinc coating protects the steel from rust and corrosion, which is crucial for maintaining the long-term integrity of roofs and frames exposed to damp conditions.
Flat mending plates are designed to sit flush against straight joints and should not be bent, as this can weaken the metal. For corner joints or angled connections, it is much safer to use dedicated angle brackets.
