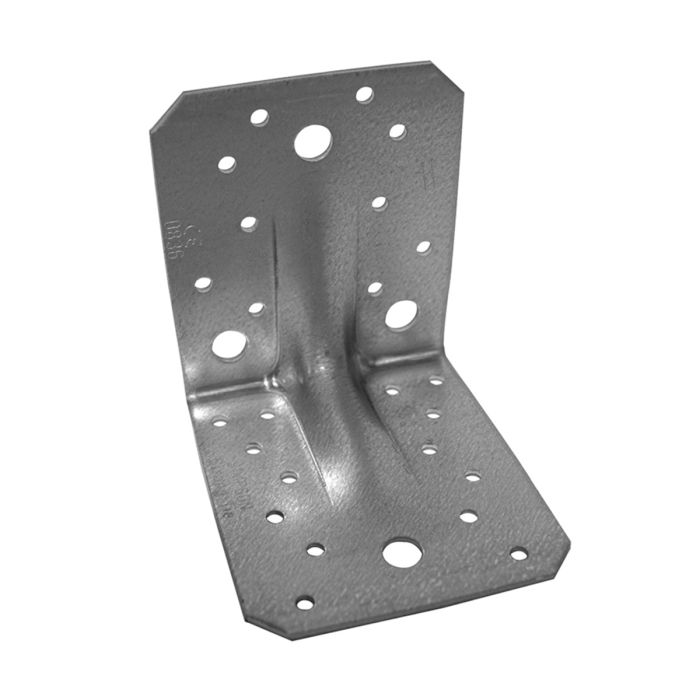

Simpson Strong-Tie Reinforced Angle Bracket 105mm x 105mm x 90mm
calcPageSize())"
/>
Simpson Strong-Tie Reinforced Angle Bracket 105mm x 105mm x 90mm
(Approx. 3-5 working days)


Do you have a MacBlair trade account?
The Simpson Strong-Tie ABR105-R is a reinforced angle bracket designed for structural applications in framing and wood-frame housing. It is used to connect supporting members such as solid wood, glued-laminated wood, concrete, or steel to supported members including solid wood, composite lumber, and triangular trusses. Common applications include the fastening of small trusses, cladding plates, cladding uprights, rafter anchors, cantilevers, and headers.
This angle bracket is formed from pre-galvanised mild steel (Z275) to provide corrosion resistance suitable for Service Class 2 indoor environments. The ABR105-R variant features improved load capacities for both full and partial nailing, offering strength in all directions. It can be installed using CNA annular ring-shank nails (4.0x35mm or 4.0x50mm), CSA screws, bolts, or mechanical and chemical anchors when fixing to concrete or hollow masonry substrates.
- Made from Z275 pre-galvanised mild steel for Service Class 2 indoor protection.
- Supports load capacity in all directions for secure structural framing.
- Features 3mm thickness to withstand heavy loads in wood-to-wood connections.
- Compatible with CNA nails, CSA screws, and anchors for varied substrates.
- CE marked and ETA certified to ensure compliance with building regulations.
| Brand | Simpson Strong-Tie |
|---|---|
| Width | 105 mm |
| Depth | 90 mm |
| Model Name / No | ABR105-R |
| Weight | 0.4 kg |
| Self Adhesive | No |
| Thickness | 3 mm |
| Height | 105 mm |
