Simpson Strong-Tie Light Reinforced Angle Bracket 42mm x 42mm x 40mm
Simpson Strong-Tie Light Reinforced Angle Bracket 42mm x 42mm x 40mm
(Approx. 3-5 working days)
Do you have a MacBlair trade account?

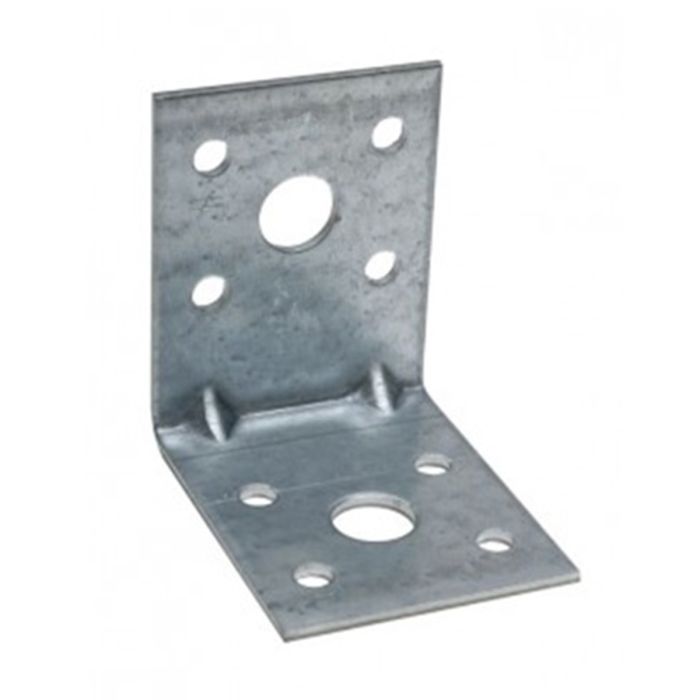

The Simpson Strong-Tie EA444/2C50 is a light reinforced angle bracket used to assemble small structural joinery for internal and external applications. It is made from 2mm thick pre-galvanised mild steel with a Z275 zinc coating, providing corrosion resistance for Service Class 2 environments. The bracket measures 42mm by 42mm with a width of 40mm and features three 5mm diameter holes on both flange A and flange B.
This angle bracket serves as a connection for timber to timber, timber to masonry, and timber to steel joints. In framing and furniture assembly applications, it fastens header members to supporting members such as solid wood, glued-laminated wood, or composite lumber. When used as a masonry or steel connector, it connects supported members to concrete or steel substrates.
Installation requires specifying fasteners based on the application and fixing medium. For wood connections, it accepts 3.75x30mm square twist nails, 4.0mm CNA annular ring-shank nails, or 5.0mm CSA screws. For masonry or concrete applications, HIPC drive anchors or LMAS resin anchors with AT-HP resin are specified.
- Made from 2mm thick pre-galvanised mild steel for structural stability.
- Features a Z275 zinc coating for corrosion resistance in service class 2.
- Measures 42x42x40mm to fit small structural joinery and interior fittings.
- Includes three 5mm holes on each flange for standard nails or screws.
- Supports timber to timber, masonry or steel connections.
| Brand | Simpson Strong-Tie |
|---|---|
| Width | 40 mm |
| Length | 42 mm |
| Model Name / No | EA444/2C50 |
| Self Adhesive | No |
| Thickness | 2 mm |
| Height | 42 mm |
