Simpson Strong-Tie Adjustable Angle Bracket 50mm x 54mm x 30mm
Simpson Strong-Tie Adjustable Angle Bracket 50mm x 54mm x 30mm
(Approx. 3-5 working days)
Do you have a MacBlair trade account?

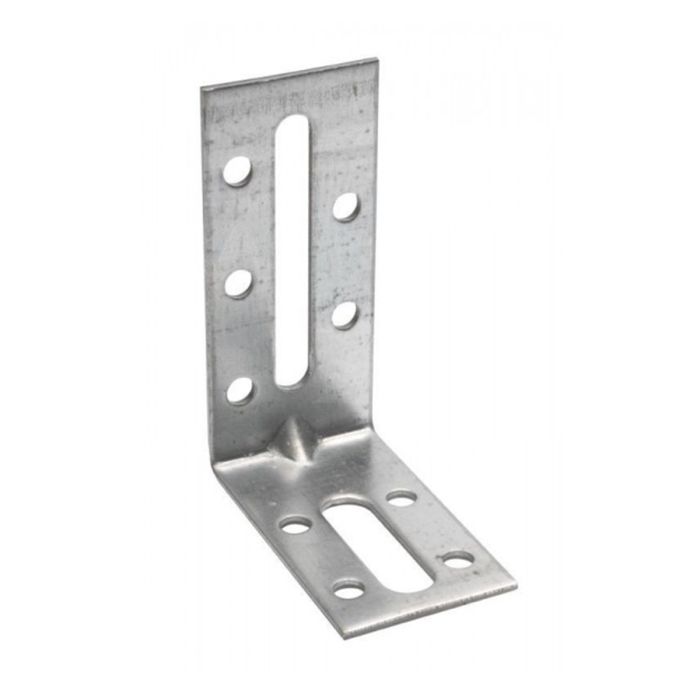

The Simpson Strong-Tie EFIXR553C50 is an adjustable angle bracket designed for the alignment and installation of interior and exterior joinery. Produced from S250GD galvanised steel with a Z275 coating in accordance with NF EN 10346, it features a built-in stiffener to maintain structural rigidity. Classified as Service Class 2 for indoor environments, the bracket joins a variety of supporting and supported materials, including timber, concrete, metal, and PVC.
This angle bracket includes obround holes on both flanges to facilitate accurate positioning before final securement. Once aligned, round holes allow for permanent fixing using appropriate fasteners. When working with wood base materials, the bracket accepts 4.0mm CNA annular ring-shank nails or 5.0mm CSA screws. For masonry and concrete applications, it accommodates HIPC 8-60/20 drive anchors, while metal installations require standard bolts or self-drilling screws.
- Made from Z275 galvanised steel for specific corrosion resistance.
- Two obround holes allow for position adjustments before final fixing.
- Compatible with timber, concrete, metal, and PVC base materials.
- Built-in stiffener improves rigidity across the angle joint.
- Measures 50x54x30mm with a 2mm thickness for joining applications.
| Brand | Simpson Strong-Tie |
|---|---|
| Width | 30 mm |
| Length | 50 mm |
| Model Name / No | EFIXR553C50 |
| Self Adhesive | No |
| Thickness | 2 mm |
| Height | 54 mm |
