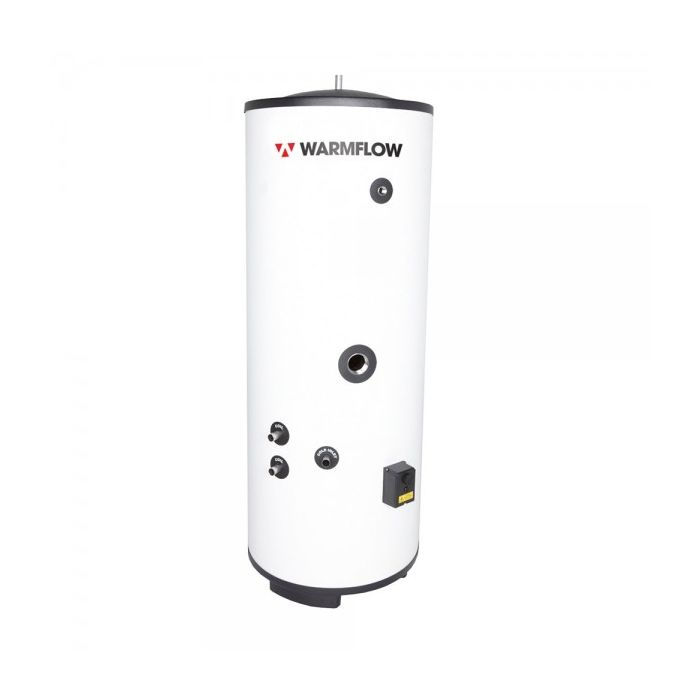

Warmflow Indirect Unvented Cylinder 250Lt
Warmflow Indirect Unvented Cylinder 250Lt
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
Available in six sizes from 120 to 300 litres to suit the vast majority of domestic installations, the Warmflow Indirect models are the core of our cylinder range. Thanks to the large surface area, high performance heat exchanger coils the Indirect models boast impressive heat up times - the 180 litre model taking just 25 minutes to reach 60ºC from cold.
The Indirect models, like the rest of the range, are designed to be fed directly from the mains water supply via the inlet group supplied, which is capable of receiving incoming water at pressures up to a maximum of 12 bar.
In order to achieve the best performance from our unvented cylinders the mains water supply must be capable of supplying a flow rate of at least 20 litres per minute with a dynamic pressure of at least 1.5 bar. Should the supply performance be less than this the hot water flow rates will be reduced, however a Warmflow unvented cylinder may still be installed and the benefits of a fast heat up time and minimal heat losses can still be enjoyed.
Spec:
- Overall height 1767mm
- Cold water capacity 245 Litres
- Heat up time (EN12897) 24 mins
Man ref: IN250UV
| Inlet
group, complete with strainer, pressure-reducing valve and balanced cold
connection Incoloy 3kW immersion heater (s) A 2 Port zone valve (except direct models) Expansion vessel complete with hanging bracket |
| Brand | Warmflow |
|---|---|
| Bar Pressure | 16 Bar |
| Colour | Grey |
| Depth | 544 mm |
| Diameter | 544 mm |
| Heat Source | Indirect |
| Heating Energy Rating | C |
| Height | 1655 mm |
| Length | 544 mm |
| Weight | 50 kg |
| Usage | Internal Use |
| Vented/Unvented | Unvented |
| Volume | 2400 ml |
