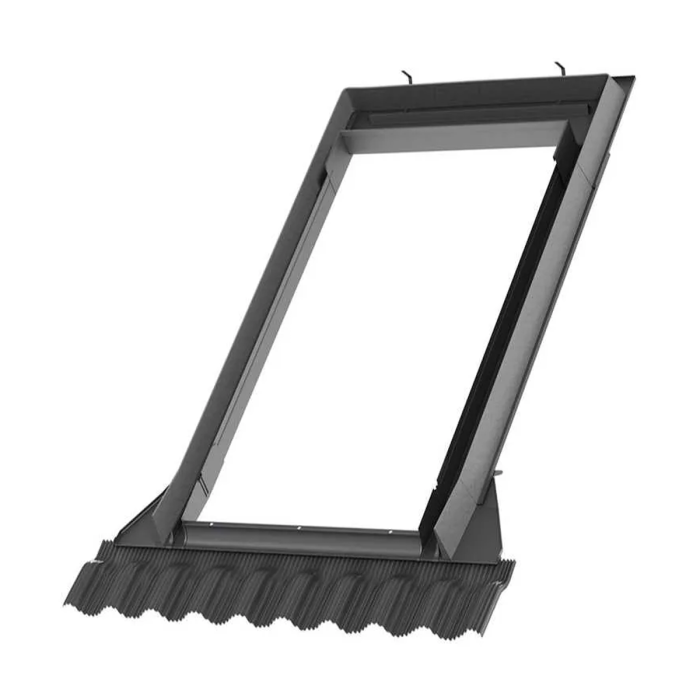

Velux EDW MK04 1000 Profiled Tile Roof Window Flashing Kit 780mm x 980mm
calcPageSize())"
/>
Velux EDW MK04 1000 Profiled Tile Roof Window Flashing Kit 780mm x 980mm
(Approx. 3-5 working days)


Do you have a MacBlair trade account?
The Velux EDW MK04 1000 is an aluminium exterior flashing kit supplied with an integrated BFX underfelt collar. It is designed to integrate a 780mm by 980mm Velux roof window into profiled roofing materials, including interlocking tiles, thatched roofs, corrugated sheets, and interlocking slates. The kit provides a secure barrier against wind-driven rain and drafts by channelling water safely into the guttering system below.
The system works through interlocking sections that overlap around the window frame to form weather-tight joints, while a foam gasket forms a seal against the contoured profile of the tiles. The included BFX underfelt collar is a pleated, vapour-permeable membrane that stretches over the window frame and battens to create an additional layer of protection against moisture ingress. It features an adjustable transverse drainage gutter to divert water away from the top of the window structure.
This kit is compatible with roof pitches ranging from 15 to 90 degrees and is suitable for roofing profiles up to 120mm in depth. Made with a grey external finish, it aligns flush with the outer frame of the roof window to maintain a clean exterior profile.
- Compatible with profiled roofing materials up to 120mm in depth.
- Designed for roof pitches ranging from 15 to 90 degrees.
- Includes a pleated BFX underfelt collar for moisture protection.
- Fitted with an adjustable gutter to divert water away from the head.
- Features a grey finish matching the standard external window frame.
| Brand | Velux |
|---|---|
| Width | 780 mm |
| Flashing Type | Tile |
| Height | 980 mm |
| Roof Pitch | 15° to 90° |
| Roof Type | Pitched Roof |
| Warranty | 0 |
| Model Name / No | EDW MK04 1000 |
| Insulation Collar (BDX) | Not Included |
| Maximum Tile Profile | 120mm |
| Underfelt Collar (BFX) | Included |
