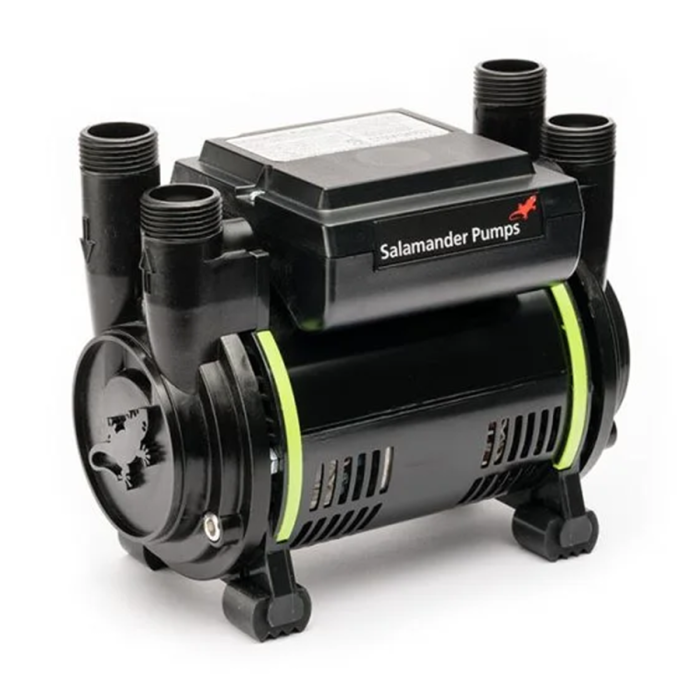

Salamander CT75 Xtra 2.0Bar Twin Ended Positive Shower Pump
Salamander CT75 Xtra 2.0Bar Twin Ended Positive Shower Pump
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
The Salamander CT75 Xtra is a 2.0Bar twin-ended positive head shower pump. It is designed to increase both hot and cold water pressure to a thermostatic shower in gravity-fed plumbing systems. This unit is strictly compatible with positive head configurations, requiring a minimum natural flow rate of 2L/min to operate, and will not function in a negative head system.
This regenerative pump uses an A.C induction motor to increase water flow to individual outlets. It operates with a noise level of 53.5dBA and features anti-vibration feet to reduce sound transmission during use. The compact dimensions allow for installation in restricted spaces, ensuring it integrates directly with existing domestic water setups to supply
The pump is continuously rated and supports a maximum water temperature of 60°C. The unit is supplied with four 15mm push-fit flexible hoses, which include isolating valves on the inlets to assist with installation and maintenance. The CT75 Xtra holds WRAS approval and carries Quiet Mark certification.
- Delivers 2.0Bar of pressure for boosting hot and cold water supplies.
- Operates at 53.5dBA with anti-vibration feet to reduce system noise.
- Features a regenerative design with an A.C induction motor for continuous use.
- Suitable for positive head gravity-fed systems requiring a 2L/min minimum flow.
- Includes four 15mm push-fit flexible hoses with inlet isolating valves.
| Width | 120 mm |
|---|---|
| Connection Type | 3/4” Female x 15mm Push-Fit |
| Connection Size | 18 mm |
| Height | 160 mm |
| Length | 185 mm |
| Model Name / No | CT75XTRA |
| IP Rating | IPX3 |
| Max Fluid Temperature | 60 °C |
| Length Of Warranty | 3 Years |
| Cable Length | 1.5 m |
| Current (Full Load) | 2.05Amps |
| Fuse Rating | 3Amps |
| Maximum Water Temperature | 60°C |
| Mechanical Seal | EPDM/PTFE/Ceramic |
| Motor Type | A.C Induction Motor |
| Noise Level | 53.5 |
| Power Consumption | 484W |
| Power Supply | 230v |
| Pressure @ 16lpm (8lpm for singles) | 1.3Bar |
| Pressure @ 8lpm (4lpm for singles) | 1.7Bar |
| Pressure @ Closed Head | 2.0Bar |
| Pump Type | Regenerative, Positive Head, Twin Ended |
