Grant Vortex External Condensing Oil Boiler 15-26kW
Grant Vortex External Condensing Oil Boiler 15-26kW
(Approx. 3-5 working days)
Do you have a MacBlair trade account?

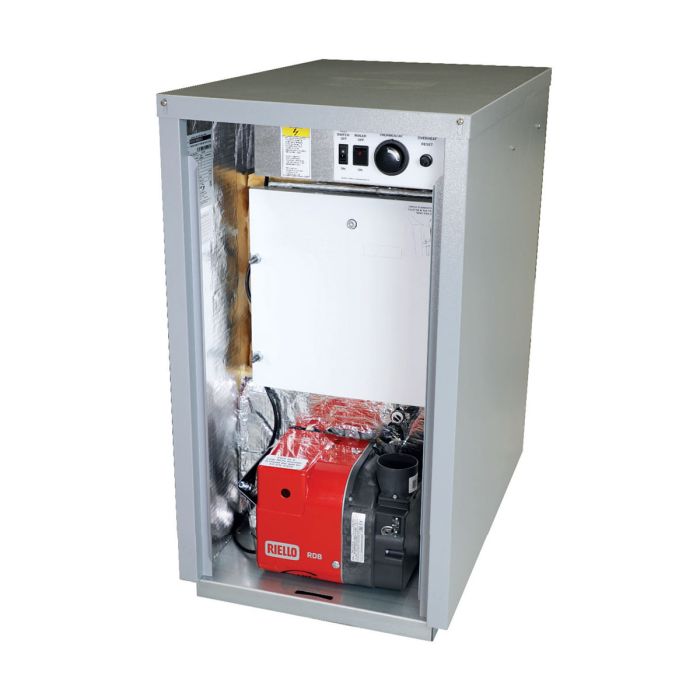

The Grant Vortex External 15-26kW is a free standing, oil fired condensing boiler designed for outdoor installation where internal space is limited. It features a goose grey powder-coated galvanised steel casing for weather resistance and incorporates the Vortex stainless steel heat exchanger for high thermal efficiency.
This boiler provides central heating for small to medium properties and is compatible with indirect hot water cylinders. It operates on Class C2 kerosene and supports up to a 30% bio-kerosene blend (B30K), making it suitable for future low carbon fuel use. The unit includes a Riello RDB burner and a factory fitted frost protection thermostat preset to 2°C for reliable operation in cold conditions.
The Vortex External model is fully compliant with OFTEC standards and EC directives. It comes with multi-directional flue options and side or rear flue exits for flexible installation. Annual servicing is simplified by front access to all internal components.
- Output range: 15kW to 26kW for moderate heating loads
- Powder coated galvanised steel casing for outdoor durability
- Riello RDB burner with plug and socket connection
- Factory fitted frost stat preset to 2°C
- Compatible with B30K bio-kerosene blend
| Brand | Grant |
|---|---|
| Width | 800 mm |
| Applicable Standards | OFTEC Approved |
| Connection Size | 22 mm |
| Depth | 505 mm |
| Flue Included | No |
| Fuel Type | Class C2 Kerosene (B30K compatible) |
| Heating Energy Rating | A |
| Heat Output Range | 15kW – 26kW |
| Height | 908 mm |
| Central Heating Output | 26 kW |
| Model Name / No | VORTMOD1526P |
| Weight | 152 kg |
| Mount Type | Floor Mounted |
| Residential Warranty | 1 year manufacturer, 5 year heat exchanger (T&Cs apply) |
| Sound Power Level (dB A): | 51 dB |
