Grant Plume Diverter Kit 2m (100mm)
Grant Plume Diverter Kit 2m (100mm)
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
Designed to manage nuisance terminal pluming, this adjustable plume diverter kit extends the discharge point upwards using Grant’s single wall plume system in the 100mm size. It is intended for condensing boilers in the 26 to 70kW range where an existing low level balanced flue terminal is already fitted and the plume needs redirected to a higher level.
Installation is built around a starter elbow that fits over the existing low level terminal, twin telescopic flue tubes that clamp together to the required height, then a terminal elbow to discharge away from the wall. The kit includes adjustable wall brackets and locking bands so the assembly can be secured and set to suit site conditions, while keeping the flue route external.
Compatibility is based on using the plume kit with Grant low level balanced flue systems such as Oil Boiler Flues range items (EZ90 and EZ200) or a condensing module with a low level discharge flue, following the manufacturer fitting instructions and terminal position requirements.

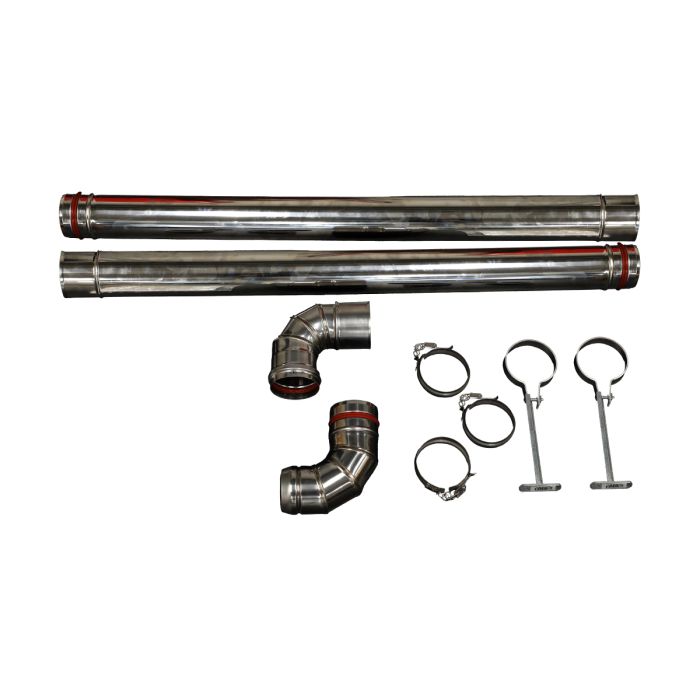

Kit Components
Starter elbow with internal seal (x1)
Terminal elbow with external seal (x1)
Telescopic flue tubes 1000mm long each (pair)
Adjustable wall brackets (x2)
Locking bands (x2)
Locking band for telescopic joint (x1)
Self tapping screws 3mm (x2)
Lubricant for seals and instruction sheet
- Adjustable overall length from 1290mm to 2140mm
- 100mm system size for 26 to 70kW condensing boilers
- Fits over existing low level balanced flue terminal
- Supplied with locking bands and wall brackets
- Includes seals and lubricant for correct jointing
| Brand | Grant |
|---|---|
| Energy Rating | Not Selected |
| Applicable Standards | CE Approved |
| Connection Type | Push-fit / Locking Band |
| Connection Size | 100 mm |
| Diameter | 100 mm |
| Includes | Locking Band, Telescopic plume kit |
| Model Name / No | GPDA200 |
| Weight | 3.4 kg |
| Sold Per | Each |
| Suitable For | Grant oil boilers 26–70kW |
| Adjustment Range | 1290–2140mm (telescopic range) |
| System Type | EZ-Fit Blue System |
| Flue Type | Plume Diverter Kit |
