Grant Blue System Vertical Flue Terminal (80mm)
Grant Blue System Vertical Flue Terminal (80mm)
(Approx. 3-5 working days)
Do you have a MacBlair trade account?

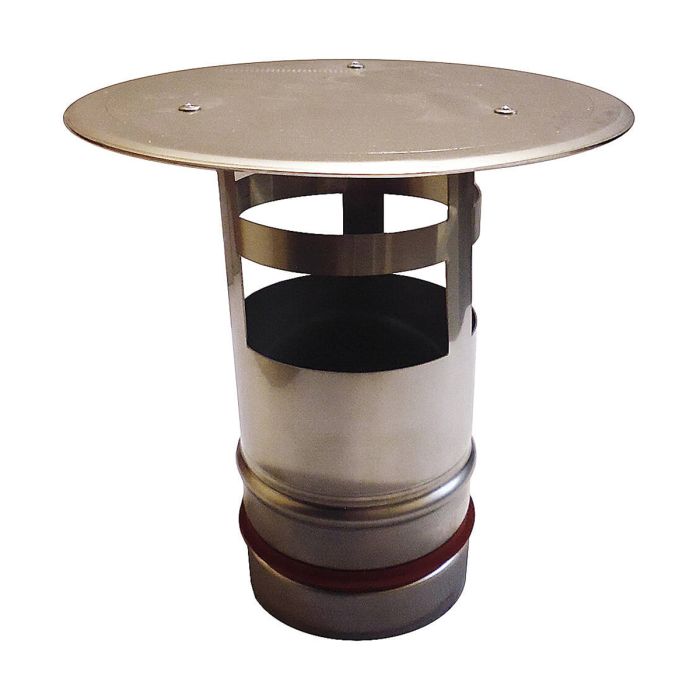

This vertical plume terminal is used at the top of an 80mm Blue System run to direct flue gases upward when working with Grant oil boilers up to 26kW. It is fitted where a rising plume route is required above the roofline or where a high point on an external wall provides a clear and safe discharge location.
The terminal slots onto the final section of the single wall plume pipework using the supplied locking band. Its built-in cowl helps maintain a stable discharge pattern in changing weather conditions. This makes it suitable for boiler house and external installations where a vertical exit is preferred over a horizontal high level outlet.
As part of the wider Blue System range it can be combined with extensions elbows plume diverter kits and support brackets available in the Oil Boiler Flues category. Grant installation rules still apply including overall plume height allowances and adjustments when 45 degree offsets are introduced into the route.
- Vertical discharge point for 80mm plume runs
- Suitable for Grant oil boilers up to 26kW
- Connects directly to single wall Blue System components
- Integrated cowl supports consistent flue gas release
- Locking band supplied for secure fitting
| Brand | Grant |
|---|---|
| Applicable Standards | CE Approved |
| Connection Type | Push-fit / Locking Band |
| Diameter | 80 mm |
| Height | 240 mm |
| Includes | Locking Band, Vertical terminal |
| Model Name / No | GPDVT/90 |
| Pack Quantity | 1 Per Box |
| Weight | 1.2 kg |
| Sold Per | Each |
| Suitable For | Grant oil boilers up to 26kW |
