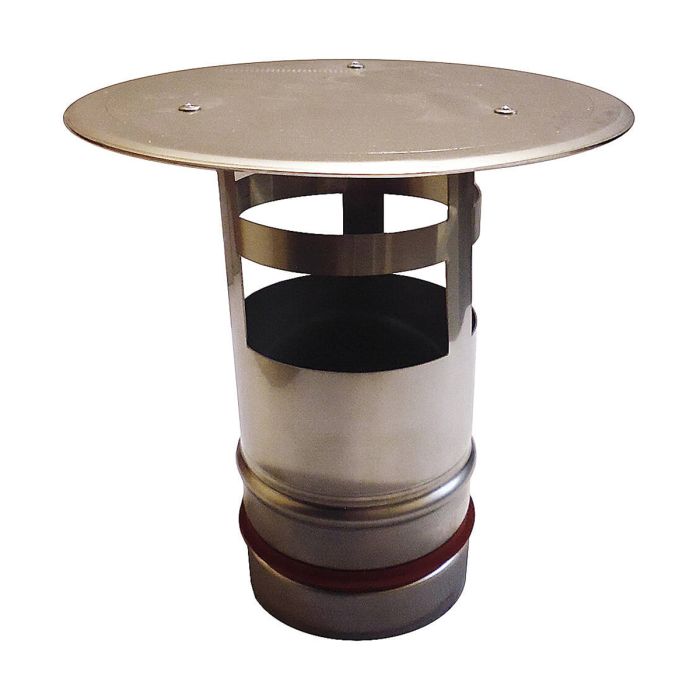

Grant Blue System Vertical Flue Terminal (100mm)
Grant Blue System Vertical Flue Terminal (100mm)
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
Used at the top of an external Blue System run, this vertical terminal provides the finishing outlet for discharging flue gases upwards. It is intended for Grant oil boiler installations in the 26kW to 70kW range where a vertical plume route is required, such as along an outside wall or from a boiler house flue exit.
A locking band connection is supplied to secure the terminal onto the rest of the Blue System pipework, helping keep the termination stable in exposed outdoor locations. It fits within the same component family as the 100mm plume kits, extensions and elbows listed in the Oil Boiler Flues range.
When planning a full Blue System route, the vertical terminal is selected as the final outlet after the required straight sections and any offsets have been set, following Grant layout rules for external single wall flue routing and wall penetration requirements.
- Vertical discharge terminal for Blue System routing
- Fits 100mm Blue System components
- Suitable for Grant oil boilers 26kW to 70kW
- Locking band supplied for secure jointing
- Used as the top termination on external runs
| Brand | Grant |
|---|---|
| Applicable Standards | CE Approved |
| Diameter | 100 mm |
| Height | 240 mm |
| Includes | Locking Band, Vertical terminal |
| Model Name / No | GPDVT/200 |
| Pack Quantity | 1 Per Box |
| Weight | 1.2 kg |
| Suitable For | Grant oil boilers 26–70kW |
| System Type | EZ-Fit Blue System |
| Flue Type | Single-Wall |
