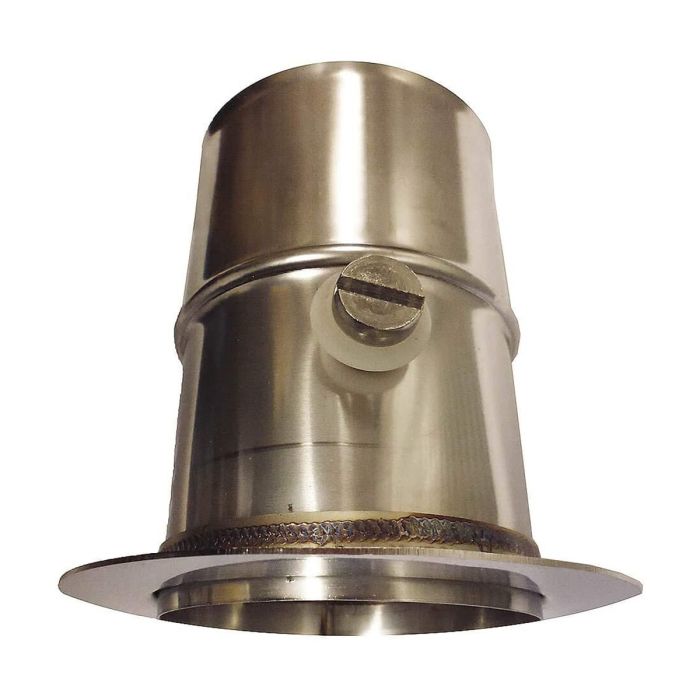

Grant Blue System Starter Section with Test Point (100mm)
Grant Blue System Starter Section with Test Point (100mm)
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
At the base of a Blue System installation, the starter section acts as the initial connection point between the boiler outlet and the single-wall external plume components. This version is designed for the 100mm Blue System used on Grant oil boilers in the 26–70kW output range and incorporates a combustion test point for routine servicing and commissioning.
The section provides a stable starting position for the rest of the flue run, ensuring the transition from the boiler spigot to the external plume pipework is properly supported. By supplying a secure joint and an accessible test point, it enables technicians to verify combustion performance without dismantling downstream components during annual checks.
Once installed, the starter section aligns with elbows, plume diverter kits, fixed extensions and terminals found throughout the Oil Boiler Flues range. As with all Blue System components, it must be considered within Grant’s overall plume-management rules, including limits on vertical rise and adjustments when angled fittings are included in the route.
- Provides the starting point for 100mm Blue System installations
- Includes combustion test point for servicing
- Suitable for 26–70kW Grant oil boilers
- Forms secure transition from boiler outlet
- Connects with full Blue System plume components
| Brand | Grant |
|---|---|
| Applicable Standards | CE Approved |
| Diameter | 100 mm |
| Height | 125 mm |
| Includes | Locking Band, Starter Section |
| Model Name / No | GPDBC/200 |
| Pack Quantity | 1 Per Box |
| Weight | 1.2 kg |
| Sold Per | Each |
| Suitable For | Grant oil boilers 26–70kW |
| System Type | EZ-Fit Blue System |
| Flue Type | Single-Wall |
