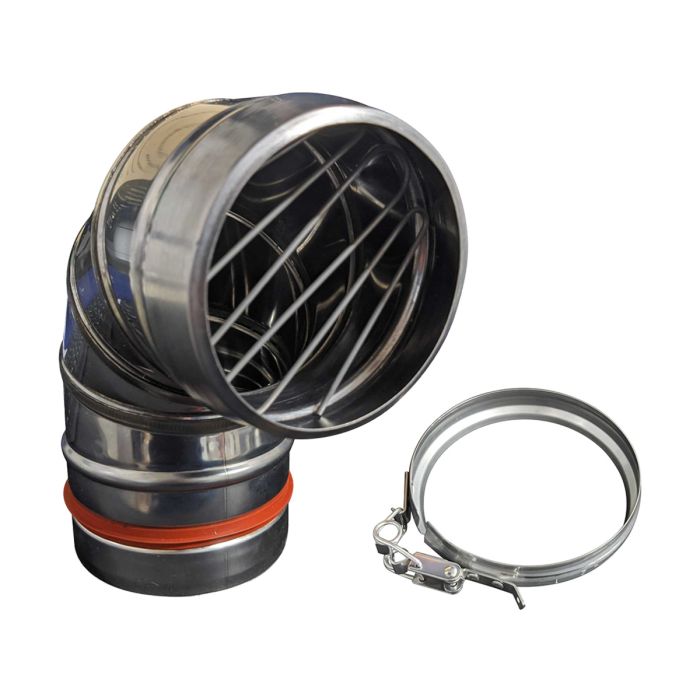

Grant Blue System High Level 90° Terminal (80mm)
Grant Blue System High Level 90° Terminal (80mm)
(Approx. 3-5 working days)
Do you have a MacBlair trade account?
When a flue needs to rise vertically before discharging sideways at an elevated point, this high level 90° terminal provides the required change in direction for Grant’s 80mm Blue System. It is intended for use on oil boilers up to 26kW where a low-level outlet is unsuitable due to nearby walkways, windows or tight boundary lines.
The terminal forms a secure joint with the rest of the Blue System using the supplied locking band, allowing the route to transition cleanly from a vertical rise to a horizontal termination point. Because it is part of the single-wall external plume system, it is commonly installed on outside walls where the flue run needs to sit clear of lower obstructions before exiting.
As with other Blue System components, this terminal works in combination with elbows, extensions, plume diverter kits and wall brackets available in the Oil Boiler Flues range. Installers should account for the overall plume height limits, especially the maximum 6m rise and any adjustments required when using angled fittings elsewhere in the system.
- Creates a high-level horizontal outlet
- Designed for 80mm Blue System layouts
- Suitable for Grant boilers up to 26kW
- Supports vertical-to-horizontal transitions
- Locking band included for secure fixing
| Brand | Grant |
|---|---|
| Angle | 90 ° |
| Applicable Standards | CE Approved |
| Connection Type | Push-fit / Locking Band |
| Diameter | 80 mm |
| Includes | Locking Band, High level 90° terminal |
| Model Name / No | GPDHLT/90 |
| Pack Quantity | 1 Per Box |
| Weight | 1.3 kg |
| Sold Per | Each |
| Suitable For | Grant oil boilers up to 26kW |
