Grant Blue System 45° Elbow (100mm)
calcPageSize())"
/>
Grant Blue System 45° Elbow (100mm)
(Approx. 3-5 working days)


Do you have a MacBlair trade account?

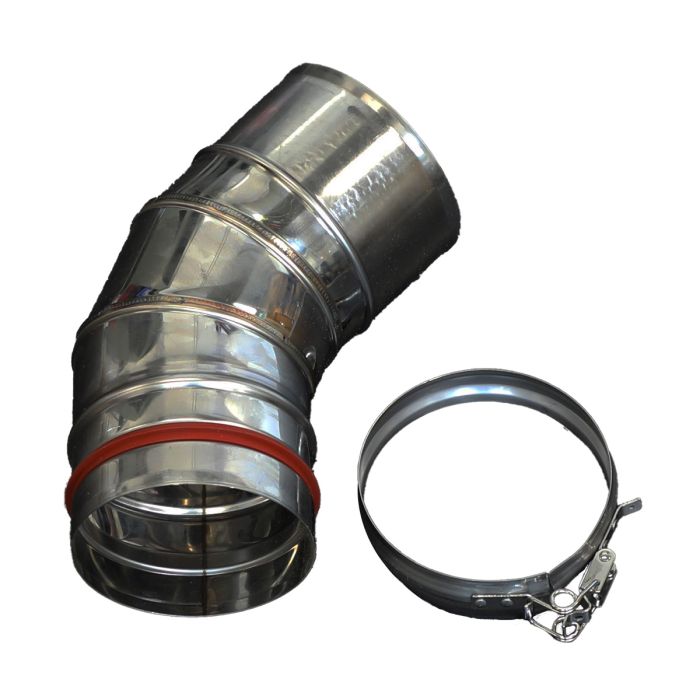

This 45° elbow is part of the 100mm Blue System and is used to introduce an offset in an external single-wall plume route for Grant oil boilers between 26kW and 70kW. It allows the flue line to navigate around features such as eaves, corners or structural obstructions without relying on sharp directional changes.
The elbow connects directly to other Blue System components using the supplied locking band, forming a rigid joint that maintains correct alignment throughout the plume path. Its geometry is designed to provide predictable offsets—an important factor when calculating the available rise and overall route length in a plume-managed installation.
Within a full system layout, this elbow integrates with plume kits, extensions, terminals and support brackets available across the Oil Boiler Flues category. When used, installers must apply Grant’s planning rules, including reducing the maximum allowable plume length by one metre for each 45° bend used in the system, and ensuring the elbow is positioned where the plume remains free from obstructions.
- Creates a controlled 45° offset in 100mm plume routes
- Compatible with Grant Blue System for 26–70kW boilers
- Supports external flue alignment around obstacles
- Locking band supplied for secure installation
- Suitable for vertical or horizontal plume adjustments
| Brand | Grant |
|---|---|
| Energy Rating | Not Selected |
| Angle | 45 ° |
| Applicable Standards | CE Approved |
| Connection Type | Push-fit / Locking Band |
| Diameter | 100 mm |
| Includes | Locking Band, 45° Elbow |
| Model Name / No | GPD45/200 |
| Pack Quantity | 1 Per Box |
| Weight | 1.1 kg |
| Sold Per | Each |
| Suitable For | Grant oil boilers 26–70kW |
| System Type | EZ-Fit Blue System |
| Flue Type | Single-Wall |
