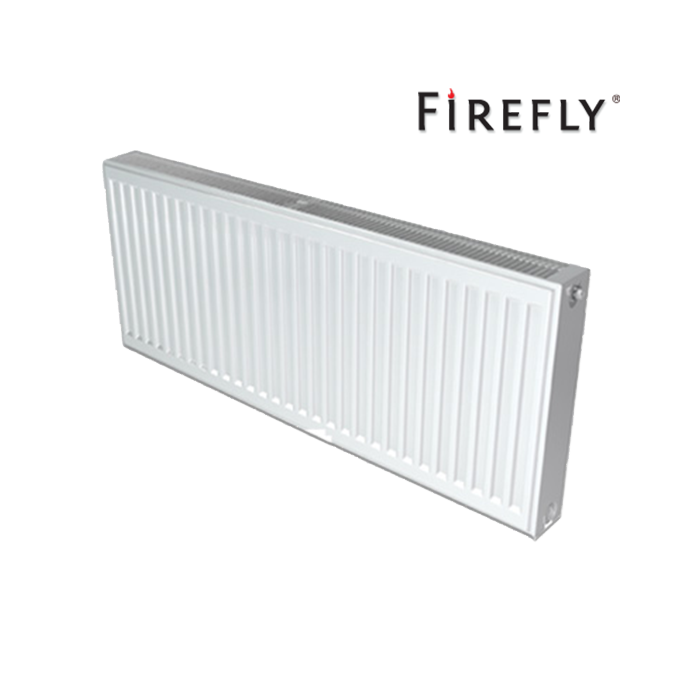

Firefly Double Convector Type 22 Radiator 600mm x 1800mm
Product code: 512386
Firefly Double Convector Type 22 Radiator 600mm x 1800mm
Product code:
Available for delivery
(Approx. 3-5 working days)
Available to order for delivery
Extended lead times apply
Out of stock for delivery
Available for collection
Available to order for collection
from
Change Branch
Extended lead times apply
Out of stock for collection
Out of stock for collection
Change Branch
was
£
£
Inc VAT
£
Ex VAT
was
£
£
Ex VAT
£
Inc VAT
(
£
per
)
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Do you have a MacBlair trade account?
Product Information
The Firefly Type 22 double convector radiator is a steel panel radiator designed for central heating systems. It features two panels and two convector fins to deliver high heat output while maintaining a slim profile. Finished in white (RAL 9016), it includes a top grille and side panels.
Manufactured to BS EN 442 standards, this radiator is suitable for open and closed heating circuits. It is pressure tested to 13 bar and operates at a maximum pressure of 10 bar. Heat output for this size is 3942 W (13,450 BTU) at ΔT50°C and 5040 W (17,200 BTU) at ΔT60°C, making it suitable for large rooms or spaces requiring substantial heat.
The radiator is supplied with wall mounting brackets, an air vent, and a blanking plug. Standard connections are ½" BSP positioned at opposite ends. The surface is treated with anti-corrosion coating, primer, and a hard-baked powder finish for durability.
- Dimensions: 600mm height x 1800mm length
- Heat output: 3942 W (ΔT50) / 5040 W (ΔT60)
- Type 22 design with double panel and double convector
- Mild steel construction with RAL 9016 powder-coated finish
- Tested to 13 bar; maximum operating pressure 10 bar
Specifications
| Brand | Thermtek |
|---|---|
| Width | 1800 mm |
| Applicable Standards | EN ISO 9001:2008, BS EN 442 |
| BTU | 17200 BTU |
| Connection Type | 1/2" BSP |
| Connection Size | 0.5 " |
| Height | 600 mm |
| Colour | White |
Supporting Documents
