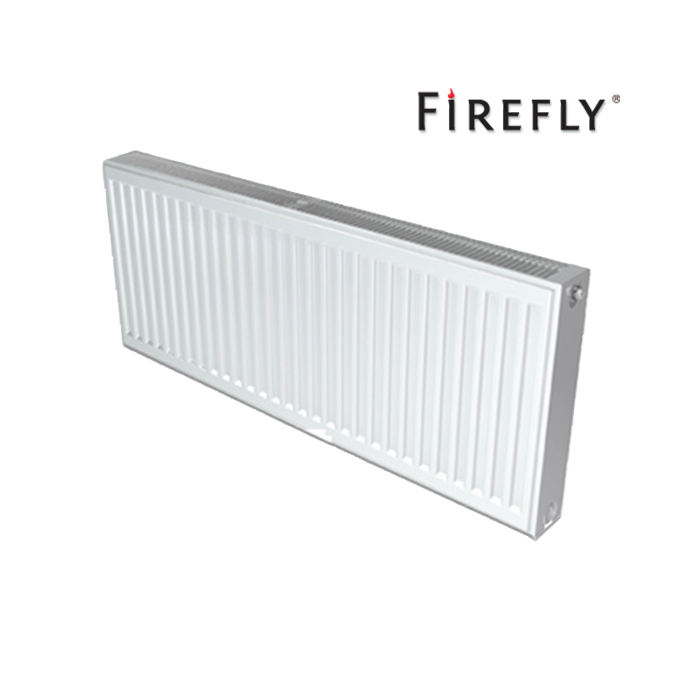

Firefly Double Convector Type 22 Radiator 500mm x 1400mm
Product code: 512355
Firefly Double Convector Type 22 Radiator 500mm x 1400mm
Product code:
Available for delivery
(Approx. 3-5 working days)
Available to order for delivery
Extended lead times apply
Out of stock for delivery
Available for collection
Available to order for collection
from
Change Branch
Extended lead times apply
Out of stock for collection
Out of stock for collection
Change Branch
was
£
£
Inc VAT
£
Ex VAT
was
£
£
Ex VAT
£
Inc VAT
(
£
per
)
Ex VAT
, per item
Inc VAT
, per item
Ex VAT
Inc VAT
Ex VAT
, per item
Inc VAT
, per item
Ex VAT
Inc VAT
Do you have a MacBlair trade account?
Product Information
The Firefly Type 22 double convector radiator is a steel panel radiator designed for central heating systems. It features two panels and two convector fins to deliver high heat output while maintaining a slim profile. Finished in white (RAL 9016), it includes a top grille and side panels.
Manufactured to BS EN 442 standards, this radiator is suitable for open and closed heating circuits. It is pressure tested to 13 bar and operates at a maximum pressure of 10 bar. Heat output for this size is 2569 W (8770 BTU) at ΔT50°C and 3280 W (11,190 BTU) at ΔT60°C, making it suitable for larger rooms or spaces requiring substantial heat.
The radiator is supplied with wall mounting brackets, an air vent, and a blanking plug. Standard connections are ½" BSP positioned at opposite ends. The surface is treated with anti-corrosion coating, primer, and a hard-baked powder finish for durability.
- Dimensions: 500mm height x 1400mm length
- Heat output: 2569 W (ΔT50) / 3280 W (ΔT60)
- Type 22 design with double panel and double convector
- Mild steel construction with RAL 9016 powder-coated finish
- Tested to 13 bar; maximum operating pressure 10 bar
Specifications
| Brand | Thermtek |
|---|---|
| Width | 1400 mm |
| Energy Rating | Not Selected |
| Applicable Standards | EN ISO 9001:2008, BS EN 442 |
| BTU | 11190 BTU |
| Connection Type | 1/2" BSP |
| Connection Size | 0.5 " |
| Sold Per | Item |
| Height | 500 mm |
| Colour | White |
