Product Information

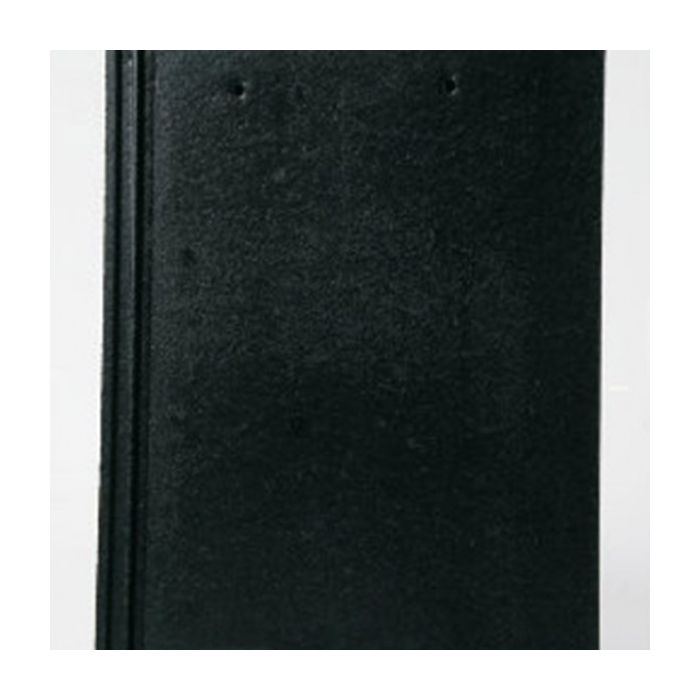

A traditional concrete interlocking flat tile which is fixed on the roof in a broken bond pattern.
Specification:
| Size of Tile Overall | 420 x 330mm |
| Minimum Pitch | 17.5 degrees (for rafter length over 8 metres or sites with a high level of exposure please consult our technical department) |
| Maximium Pitch | 90 Degrees (subject to fixing specifications) |
| Headlap (minimum) | 75mm above 25 degrees |
| Headlap (maximum) | 100mm at 25 degrees or below |
| Gauge (maximum) | 345mm |
| Cover width of one tile (nominal | 297mm |
| Covering Capacity (Headlap 75mm) | 9.8 tiles / sq metre |
| Covering Capacity (Headlap 100mm) | 10.5 tiles / sq metre |
| Hanging Length (nominal) | 400mm |
| Weight per 1000 (approx) | 5.45 tonnes |
| Recommended Batten size (see BS5534). Rafter centres up to 600mm | 50 x 25mm |
| Recommended Nail size | 50mm x 3.35mm |
Colour: Black
