Product Information

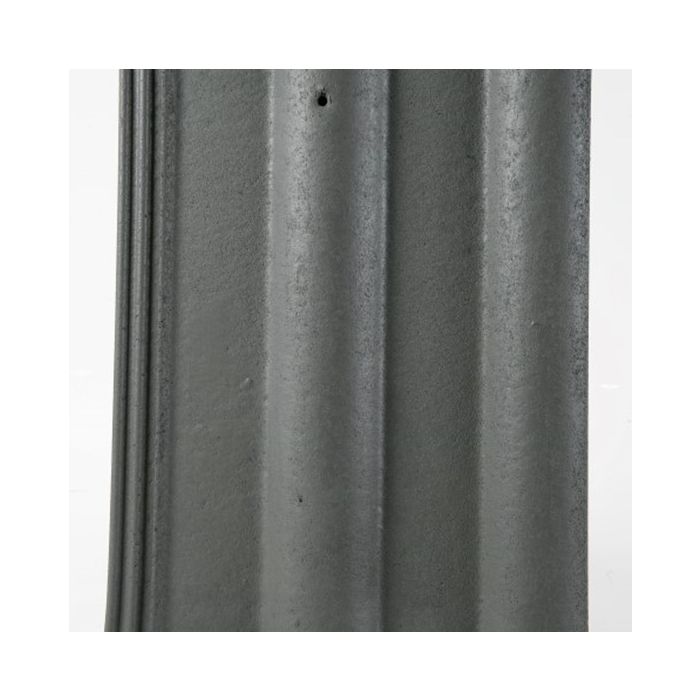

The Double Roll tile has the timeless double roman profile in a large format roof tile adding character to any building.
Specification:
| Size of Tile (overall) | 420 x 330mm |
| Minimum Pitch | 22.5 degrees |
| Maximum Pitch | 90 degrees (subject to fixing specification) |
| Headlap (minimum) | 75mm above 25 degrees // 100mm at 25 degrees or below |
| Headlap (maximum) | 100mm |
| Gauge (maximum) | 345mm |
| Covering Width of one tile (nominal) | 300mm |
| Covering Capacity (Headlap 75 mm) | 9.7 / sq metre |
| Covering Capacity (Headlap 100mm) | 10.4 / sq metre |
| Hanging Length (nominal) | 400mm |
| Weight per 1000 (approx) | 5.0 tonnes |
| Recommended Batten size (see BS 5534). Rafter centres at 600mm | 50 x 25mm |
| Recommended Nail size | 60mm x 3.35mm |
