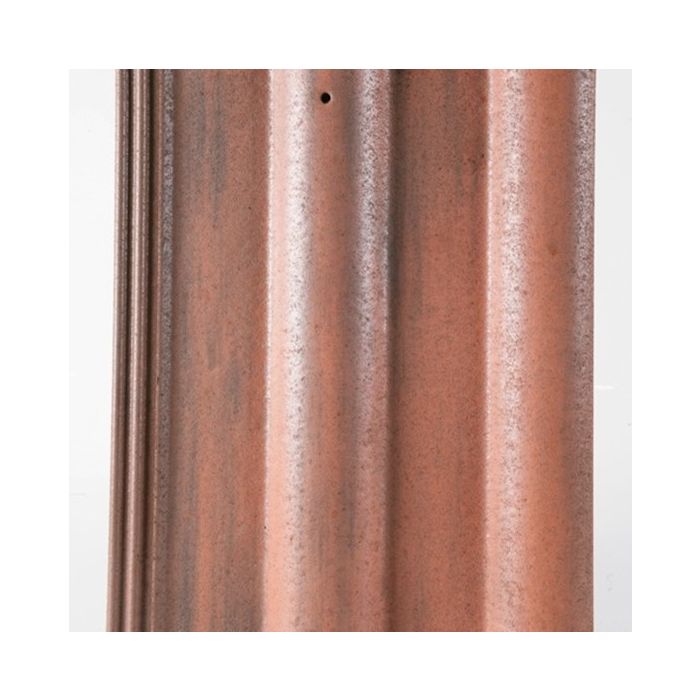

Double Roll Concrete Roof Tile Antique Red
Product code: 240516
Double Roll Concrete Roof Tile Antique Red
Product code:
Available for delivery
(Approx. 3-5 working days)
Available to order for delivery
Extended lead times apply
Out of stock for delivery
Available for collection
Available to order for collection
from
Change Branch
Extended lead times apply
Out of stock for collection
Out of stock for collection
Change Branch
was
£
£
Inc VAT
£
Ex VAT
was
£
£
Ex VAT
£
Inc VAT
(
£
per
)
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Ex VAT
Inc VAT
Do you have a MacBlair trade account?
Product Information
The Double Roll tile has the timeless double roman profile in a large format roof tile adding character to any building.
Specification:
| Size of Tile (overall) | 420 x 330mm |
| Minimum Pitch | 22.5 degrees |
| Maximum Pitch | 90 degrees (subject to fixing specification) |
| Headlap (minimum) | 75mm above 25 degrees // 100mm at 25 degrees or below |
| Headlap (maximum) | 100mm |
| Gauge (maximum) | 345mm |
| Covering Width of one tile (nominal) | 300mm |
| Covering Capacity (Headlap 75 mm) | 9.7 / sq metre |
| Covering Capacity (Headlap 100mm) | 10.4 / sq metre |
| Hanging Length (nominal) | 400mm |
| Weight per 1000 (approx) | 5.0 tonnes |
| Recommended Batten size (see BS 5534). Rafter centres at 600mm | 50 x 25mm |
| Recommended Nail size | 60mm x 3.35mm |
