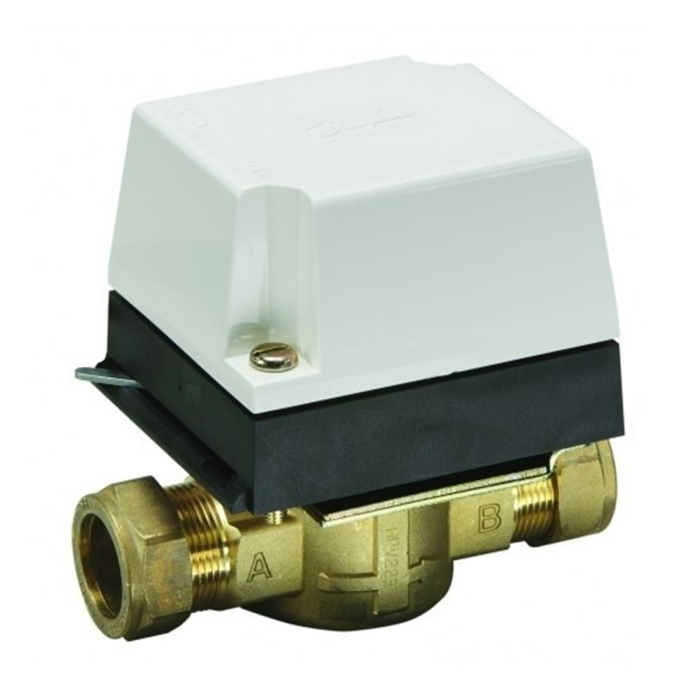

Danfoss HP22 22mm 2 Port Motorised Zone Valve
calcPageSize())"
/>
Danfoss HP22 22mm 2 Port Motorised Zone Valve
(Approx. 3-5 working days)


Do you have a MacBlair trade account?
The Danfoss HP22 22mm 2-port motorised zone valve is a complete valve and actuator set designed for controlling water flow in residential and commercial wet central heating systems. It provides regulation for both central heating and hot water circulation, functioning as a core component within heating controls . The unit features 22mm external compression fittings, making it compatible with standard copper and iron pipework.
The valve utilises a two-port, positive shut-off shoe mechanism that includes self-cleaning capabilities. This design allows water to flow through the unit in either direction as required by the heating plan. It incorporates a spring-return-to-close actuator equipped with auxiliary switches and a 1m cable using industry-standard wire colours for wiring. A manual override lever is included, enabling the valve to be opened without power, which is useful during system filling or draining.
Operating at 230V, the HP22 valve supports a maximum working pressure of 10bar and handles water temperatures up to 95°C. The actuator head is replaceable and serves as a direct in-service replacement for actuators on various other makes of motorised valves. With a Kvs value of 8.2m³/h, it maintains standard flow rates across the system.
- Complete 22mm compression valve and actuator set for standard pipework.
- Self-cleaning positive shut-off shoes allow bidirectional water flow.
- Integrated manual override lever simplifies system filling and draining.
- Spring-return actuator includes a 1m cable with standard wire colours.
- Handles water temperatures up to 95°C at a maximum working pressure of 10bar.
| Brand | Danfoss |
|---|---|
| Connection Type | External Compression |
| Connection Size | 22 mm |
| Maximum Pressure | 10 |
| Model Name / No | 087N6609 |
| Cable Length | 1 m |
| Frequency | 50-60Hz |
| Kvs Value | 8.2m³/h |
| Maximum Operating Temperature | 95°C |
